波形重构代码

对真实世界的信号进行求导，需要先大幅提高信号的信噪比，否则求导运算就是一个噪音放大器。对于LAOS实验的信号，由于假设其为一系列奇次谐波的和：\sigma\left(t \right )=\sum_{n=1:\textup{odd}}^\infty\sigma_\textup{n}\sin\left(n\omega t+\delta_\textup{n} \right )。因此，可以据此直接进行波形重构。即通过FFT得到信号的谐波振幅和相位角，按照此式重构一个平滑的波型，再拿去做微分。原理很简单，但是在MATLAB里整了半天，强度是对的，但相位角永远是错的。研究了一晚上，才发现FFT得到的相位角总是少了90°，也不知道什么原因。总之加上这90°之后就完美了。为了减少日后摸索，把代码贴在这里：


clear all;close all;clc;

%============ Generate the signal for reconstruction ============%

fs=57; % sampling frequency
fi0=10/3; % input frequency

t=0:1/fs:123456/fs; % the length of signal is 12345.
t=t';
delta=[1 3 2 1];
x1=sin(2*pi*fi0*t); % the input signal is a sinusoidal wave;
x2=12*sin(2*pi*fi0*t+1) +3*sin(3*2*pi*fi0*t+3)+0.8*sin(5*2*pi*fi0*t+2)+0.02*sin(7*2*pi*fi0*t+1) +2*rand(size(t)); % the output is a sum of odd harmonics

x=[x1 x2];

%============ Reconstruction begins ============%
fi=sinfapm(x(:,1),fs); % the frequency is obtained by sinewave fitting.

Nr_cycles=floor(fi*length(x)/fs); % number of comlete cycles

N=round(Nr_cycles*fs/fi); % cutoff length for coherent sampling
x=x(1:N,:);

t=t(1:N); % cut the time axis too

Xraw=fft(x(:,2));
phase=angle(Xraw);

freq_bin=0:N-1; % frequency bin
freq_res=fs/N; % frequency resolution
freq_i=freq_bin*freq_res; % frequency axis

cutoff=ceil(N/2); % cut the first half of FFT
Xraw=2*Xraw(1:cutoff)/N;
phase=phase(1:cutoff);

max_nr_harm=7; % in practice the max number of harmonics is determined by the Nyquist frequency

I_n=zeros((max_nr_harm+1)/2,1); % amplitudes of the odd harmonics
delta_n=zeros((max_nr_harm+1)/2,1); % phase angles of the odd harmonics

% extract the harmonic information
for n=1:(max_nr_harm+1)/2
I_n(n)=abs(Xraw(round((2*n-1)*fi/freq_res)+1));
delta_n(n)=phase(round((2*n-1)*fi/freq_res)+1)+0.5*pi; % for the phase angles to be correct 0.5*pi must be added. The reason is unknown.
end
DC=abs(Xraw(1))*cos(angle(Xraw(1)))/2; % Normalization of the DC component need not multiply with 2, so the division by 2. The cosine factor determine the sign of DC offset.

fs2=300; % reconstruct the signal at a higher sampling frequency

t2=0:1/fs2:t(end);
t2=t2';

reconst=zeros(length(t2),2);
reconst(:,1)=sin(2*pi*fi*t2); % the input signal at high sampling frequency

% reconstruct the output signal by summing up the sine components
for n=1:2:max_nr_harm
reconst(:,2)=reconst(:,2)+I_n((n+1)/2)*sin(n*2*pi*fi*t2+delta_n((n+1)/2));
end
reconst(:,2)=reconst(:,2)+DC; % DC shift

plot(x(:,1),x(:,2),'k',reconst(:,1),reconst(:,2),'r')

为了展示，该代码生成一个示范信号。这个示范信号的频率、取样频率和长度都尽可能的任意（频率是个除不尽的小数，取样频率是个质数，长度是12345），也增加了比较明显的噪音。波形重构时，频率是通过对输入信号进行正弦波拟合来获得的。这一步对原信号的噪音还是十分敏感的。如果在以上代码给原信号加上高于千分之一的噪音，整个代码的结果就完全不及格了。这就要由于是后面决定谐波所处的frequency bin那步对信号频率的准确性十分敏感。

有了信号的频率，就可以进行相干取样、FFT……一切都按正常进行。

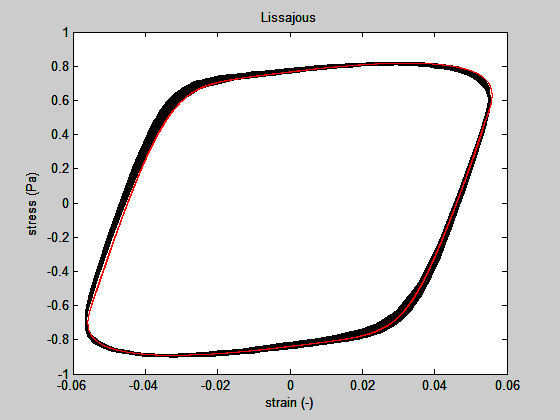

以上代码本身会给出一个结果比较。我用以上方法对一个真实的LAOS信号进行重构，得到的结果如下(黑的是实验结果，红的是重构曲线）：

实际信号示范

实际信号示范
